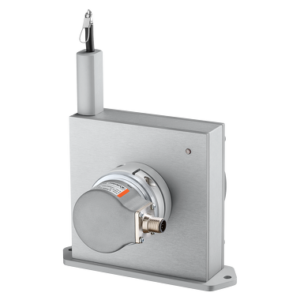

D135
- Encoder freely selectable
- Precise measuring
- Movable cable pylon
- High dynamics
- Max. measuring length : 42,5 m
- Speed : 10 m/s
- max. linearity : ±0,02 %
Add to wishlist
Draw-wire encoder – perfect for long measuring ranges.
These draw-wire mechanics D135 can be used up to a measuring length of 42.5 meters. This draw-wire mechanics may be combined with the proven Kübler Sendix encoders with incremental or absolute interface, as well as with analog sensors.
With its compact construction, the D135 suits perfectly all measuring tasks from 8 up to 42.5 meters.
Technical Data
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length | 8 m 10 m 12 m 15 m 20 m 25 m 30 m 35 m 40 m 42,5 m |
| Speed | 10 m/s |
| Dimension | 135 mm x 135 mm x 318 mm |
| Working temperature | -20 °C … +90 °C |
| Protection level | IP65 |
| Electrical | |
|---|---|
| max. linearity | ±0,02 % |
| Interfaces | Analog 0…10 V Analog 4–20 mA EtherNet/IP CANopen EtherCAT Push Pull TTL / RS422 SAE J1939 SinCos Potentiometer output PROFIBUS DP PROFINET IO SSI, Binary SSI, Gray BiSS IO-Link |
| Power supply | 12…30 V DC |
- The titanium-anodized aluminum housing and the stainless steel wires allow for using the mechanics even in harsh conditions.
- Wear-free wire exit thanks to special plain bearing guide.
- Various wire types and wire fastenings.
- High traverse speed and high acceleration.
- Flexible mounting thanks to fastening tabs or fastening grooves.
- Various connection possibilities available.
- Interchangeable encoders (interchangeable installation).
Benefits
Robust
Versatile
Downloads
| Data sheet | |
|---|---|
|
D135 PDF ∼ 1,8 MB | 05.2023 |
Download |
| Installation manual | |
|
Safety Advice for Draw-wire encoders Multilingual: German, English, French, Italian |
Download |
| Manual | |
|
A50 / B80 / C120 / D135 PDF ∼ 932,0 KB | 09.2017 |
Download |
| Mechanical CAD / STEP | |
|
D135 ZIP ∼ 47,2 MB | 01.2015 |
Download |
| Brochures | |
|
Solutions for Mobile Automation PDF ∼ 6,7 MB | 02.2023 |
Download |
| Device file | |
|---|---|
|
Sendix 58×8 CANopen ZIP ∼ 63,9 KB | 02.2018 |
Download |
|
Sendix 58×8 EtherCAT ZIP ∼ 42,7 KB | 05.2017 |
Download |
|
Sendix 58×8 PROFIBUS ZIP ∼ 35,8 KB | 08.2017 |
Download |
|
Sendix 58×8 PROFINET GSDML ZIP ∼ 15,2 KB | 09.2016 |
Download |
|
Sendix F58x8 CANopen ZIP ∼ 11,2 KB | 10.2014 |
Download |
|
Sendix F58xx – Singleturn EtherNet/IP ZIP ∼ 15,0 KB | 01.2021 |
Download |
|
Sendix F58xx – Multiturn EtherNet/IP ZIP ∼ 15,0 KB | 01.2021 |
Download |
|
Sendix M58x8 MT CANopen ZIP ∼ 678,9 KB | 12.2022 |
Download |
- Installation angle (anodized aluminum)
- Guide pulley (plastic POM)
- Ball bearing (Type 696-2R5)
- 2 x countersunk screws for side fixing
- 2 x Allen screws for fixing on a flat surface
Accessories
 |
Guide pulley With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice. Technical data: Scope of delivery: 8.0000.7000.0045 |
Mechanical CAD / STEP 8.0000.7000.0045 |
Download |
 |
Extension cable steel With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
|
Cables and Connectors
 |
M12 Connector with cable , Preassembled cable set
|
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm 5 x 0,25 mm2 |
05.00.6081.2211.XXXM
|
Data sheet M12 cordset, PVC, socket, 5-pin, A-coded, open end |
Download |
 |
M12 Connector , Field-wireable connector
|
Female connector 5-pin |
05.B-8151-0/9
|
Data sheet M12 socket, 5-pin |
Download |
 |
M12 Connector , Field-wireable connector
|
Female connector 5-pin |
05.B-8251-0/9
|
Data sheet M12 socket, angled, 5-pin, A-coded |
Download |
 |
M12 Connector , Field-wireable connector
|
Female connector 4-pin |
05.B8141-0
|
Data sheet M12 socket, 4-pin, A-coded |
Download |
 |
M12 Connector , Field-wireable connector
|
Female connector 5-pin |
8.0000.5116.0000
|
Data sheet M12 socket, 5-pin, A-coded |
Download |
 |
Cable 5 x 0,14 mm2 , Unassembled by the meter |
PVC Ø 4,7 mm ± 0,2 mm 5 x 0,14 mm2 |
8.0000.6300.XXXX |
Data sheet Cable, 5-core, PVC |
Download |
 |
Cable 5 x 0,75 mm2 , Unassembled by the meter |
TPE Ø 7,5 mm ± 0,3 mm 5 x 0,75 mm2 |
8.0000.6600.XXXX |
Data sheet Cable, 5-core, PE-X |
